NC series for metal bar cutting

Optimum solution for the sawing of metal bar with maximum precision and minimized auxiliary times.


CAPSTONE INDIA is a synonym of technological excellence. The company is managed by team of technocrats headed by Mr. Manish Bargal, who is having over two decades of expertise in sawing industry across the various areas. Capstone focuses to manufacture high quality and reliable Machines & machinery products at our state-of-the-art manufacturing facilities in Indore-India. Continuous research and development – always searching for a better way – has enabled us to take advantage of our own advanced precision technologies and sophisticated engineering experience and use them to improve the machines.

Key Features

Optimize utilization of cutter

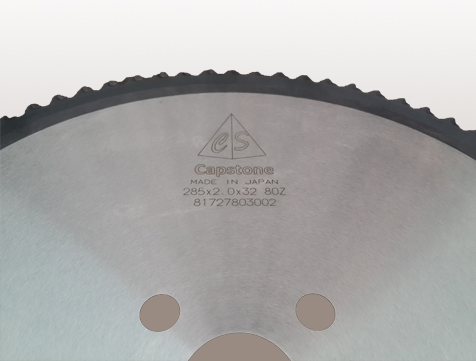

Capstone India is among the first companies in the world, which to design & establish maximum utilization of circular saw cutter size. Capstone CS60NC machine can cut dia 60mm solid metal bar with small cutter size of dia 250x2mm thick. This results in cutter stability during cutting operation & also reduces tooling cost.

High-performance sawing with precision
Heavy duty inclined guide of the saw head ensures a perfect chipping angle & high-performance sawing with precision.

Maximum tool service life
The machine is equipped with special saw blade guides positioned near tooth engagement ensuring deflection free cutting. This result in maximum cutting precision and best saw blade service life.

User friendly operation
With deep study of Industrial requirement, long trial & testing of machine program, Capstone has developed a user friendly & feature rich CNC technology enabling easy operation without need of skill operators.

Production Example:

Product
ModelDiaCutting TimeProduction Rate
CS-60-NC50 mm4 sec500 Pieces/Hrs
CS-75-NC 70 mm12 sec325 Pieces/Hrs
CS-100-NC100 mm22 sec130 Pieces/Hrs
*Material Grade- AISI/SAE 5115- straight & burr free, Cut Length-100mm

Salient Features

☛   Rigid construction of the of Slant type cutting head moves on Linear motion Guide ways and ball screw which facilitate accurate and nearly frictionless movement.
☛  Ergonomically designed Electrical control panel with Coloured HMI touch screen, for easy operation and maintenance. HMI display for user friendly operation and to make cutting parameter/production program etc.
☛  Back-lash free effect Gear box, which improves the cutting finish and enhances the cutter life.
☛   PLC programmable controlled Auto lubrication system for periodical and desired quality lubrication.
☛  Automatic Bar loader for Round Jobs, for continuous feeding of the bars into the machines.(Optional)
☛  Unique floating rear vice, offers accurate indexing & scratch free indexing of bar.(Optional)
☛  Ergonomic excess of diameter & bar stopper adjustment provision in Auto Loader along with scale.
☛  World fist machine, which can cut dia 60mm steel bar with dia 250 mm cutters. This results in economical tooling cost with precise cut.
☛  Highly efficient cutter drive which can comfortably cut 60 mm steel bar with 7.5 H.P. motor and with dia 250mm Cutter.
☛  Modular & compact design of Hydraulic Tank with oil cooler for easy maintenance & for economical oil repayment cost.
☛  PLC programmable controlled Auto lubrication system for periodical and desired quality lubrication.

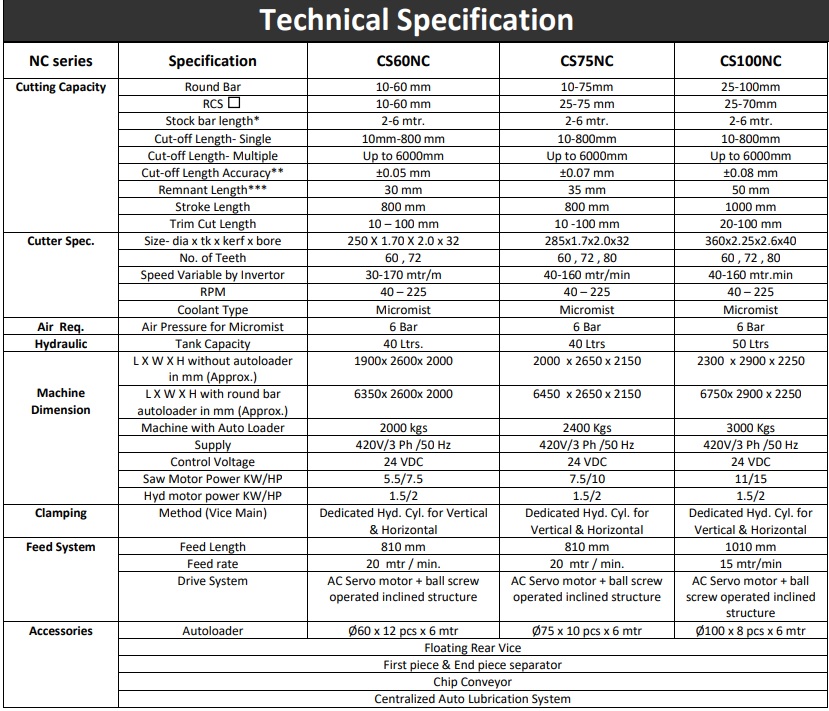

Product
Product
Product

☛  * Stock Bar Length- with Auto Loader Option.
☛  ** For straight and finish surface bar.
☛  *** Mentioned accuracy is for burr free & tapper less end face of bar. Remnant Length:
☛  Machine weight mentioned includes Auto Loader.
Note: Technical Specification can be changed for enhancement of design & performance of the machine.
