CNC series for metal bar cutting

Optimum solution for the sawing of metal bar with maximum precision and minimized auxiliary times.


CAPSTONE INDIA is a synonym of technological excellence. The company is managed by team of technocrats headed by Mr. Manish Bargal, who is having over two decades of expertise in sawing industry across the various areas. Capstone focuses to manufacture high quality and reliable Machines & machinery products at our state-of-the-art manufacturing facilities in Indore-India. Continuous research and development – always searching for a better way – has enabled us to take advantage of our own advanced precision technologies and sophisticated engineering experience and use them to improve the machines.

Our design and manufacturing engineers keep pace with emerging industrial trends. We closely listen to the needs and concerns of our customers and respond with innovations to help them maintain their competitive edge.

"The Kanefusa which is best in worldwide for the cutters has agreed to supply cutters to Capstone Circular Saw Machine. So Capstone will provide high technological and economical solution cutting."

The company is committed to supply high premium grade products with conceptual innovation to ensure the international standards.

Key Features

Optimize utilization of cutter
Capstone India is among the first companies in the world, which to design & establish maximum utilization of circular saw cutter size. Capstone CS80NC machine can cut dia 80mm solid metal bar with small cutter size of dia 285x2mm thick. This results in cutter stability during cutting operation & also reduces tooling cost.

High-performance sawing with precision
Heavy duty inclined guide of the saw head ensures a perfect chipping angle & high-performance sawing with precision.

Maximum tool service life
The machine is equipped with special saw blade guides positioned near tooth engagement ensuring deflection free cutting. This result in maximum cutting precision and best saw blade service life.

User friendly operation
With deep study of Industrial requirement, long trial & testing of machine program, Capstone has developed a user friendly & feature rich CNC technology enabling easy operation without need of skill operators.

Floating rear vice
Unique floating rear vice ensure scratch free bar indexing & clamping.

Production Example:

Product
ModelDiaCutting TimeProduction Rate
CS-80-NC80 mm7 sec290 Pieces/Hrs
CS-105-NC 100 mm14 sec180 Pieces/Hrs
CS-150-NC150 mm30 sec135 Pieces/Hrs
*Material Grade- AISI/SAE 5115- straight & burr free, Cut Length-100mm

Salient Features

☛  Rigid construction of the of Slant type cutting head moves on Linear motion Guide ways and ball screw which facilitate accurate and nearly frictionless movement.
☛  Ergonomically designed Electrical control panel with Coloured HMI touch screen, for easy operation and maintenance. HMI display for user friendly operation and to make cutting parameter/production program etc.
☛  Back-lash free effect Gear box using electromagnetic break mechanism, which improves the cutting finish and enhances the cutter life.
☛  PLC programmable controlled Auto lubrication system for periodical and desired quality lubrication.
☛  Automatic Bar loader for Round Jobs, for continuous feeding of the bars into the machines.
☛  Unique floating rear vice, offers accurate indexing & scratch free indexing of bar.
☛  Ergonomic excess of diameter & bar stopper adjustment provision in Auto Loader along with scale.
☛  World fist machine, which can cut dia 80mm steel bar with dia 285 mm cutters. This results in economical tooling cost with precise cut.
☛  Highly efficient cutter drive which can comfortably cut 80 mm steel bar with 10 H.P. motor and with dia 285mm Cutter.
☛  Modular & compact design of Hydraulic Tank with oil cooler for easy maintenance & for economical oil repayment cost.
☛  PLC programmable controlled Auto lubrication system for periodical and desired quality lubrication.

Product
Product
Product

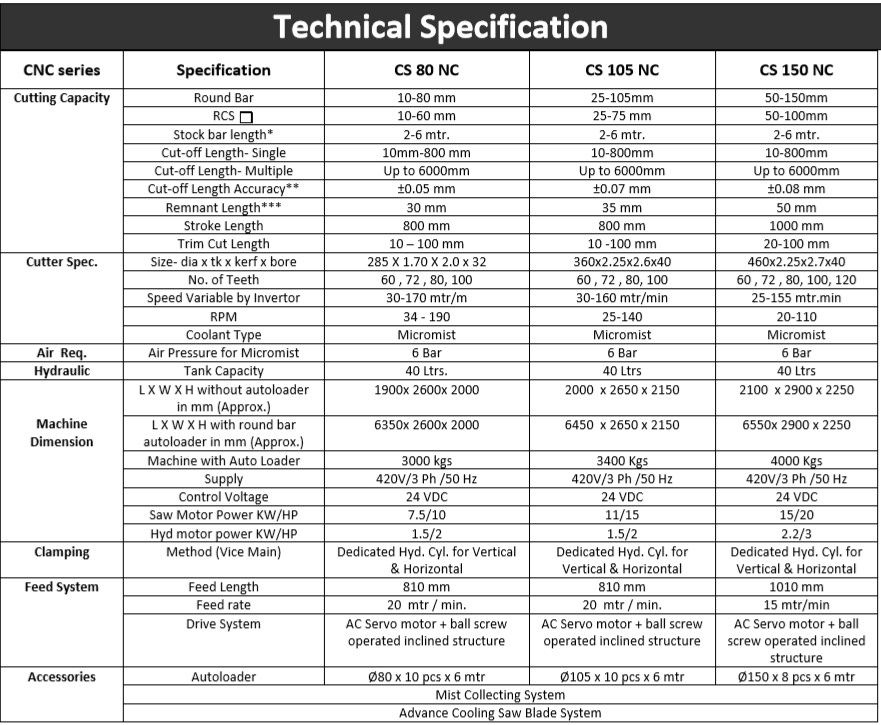

☛  * Stock Bar Length- with Auto Loader Option.
☛  ** For straight and finish surface bar.
☛  *** Mentioned accuracy is for burr free & tapper less end face of bar. Remnant Length:
☛  Machine weight mentioned includes Auto Loader.
Note: Technical Specification can be changed for enhancement of design & performance of the machine.
