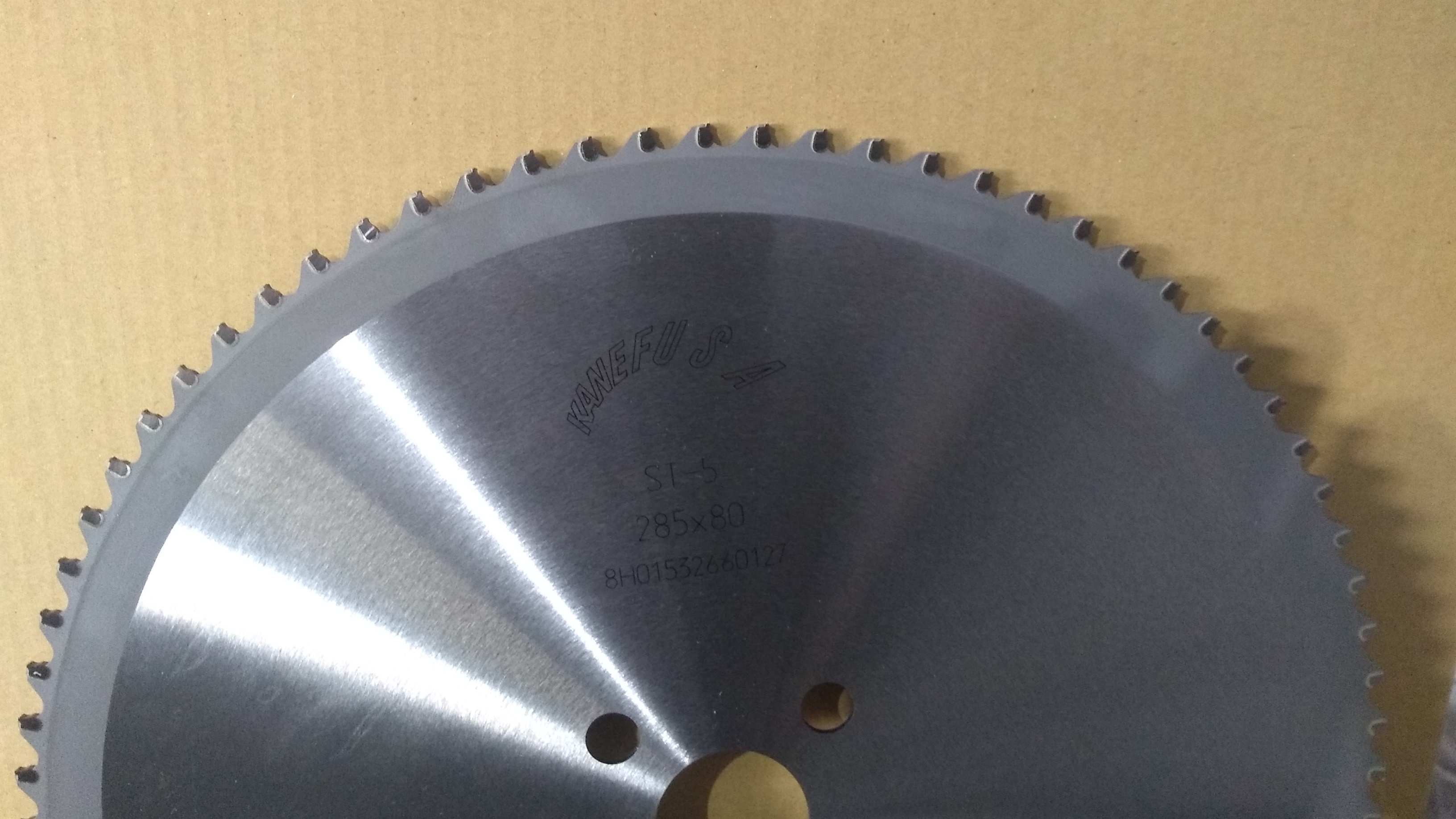

The Japanese have a deserved reputation for being tech innovators for metal cutting circular saw Blades. Capstone Circular Saw Blades are manufacturing with hi-tech process method in Japan, which ensure the quality standard & optimization of process for current industrial scenario.
☛ Carbide tipped coated cutter: Suitable for Alloy Steel & High Carbon steel bars.
☛ Carbide tipped coated with special coating: Suitable for Stainless steel bars.
☛ Cermate tipped cutter with small pitch: Suitable for carbon steel pipe cutting.
☛ Tungsten carbide tipped with negative rack angle: Suitable for Aluminium & Aluminium alloy bars.
☛ Tungsten carbide tipped with special coating: Suitable for copper & Brass.
Capstone Range of Circular saw Blades:-
☛ Cermate tipped Cutters: Suitable for medium carbon steel bars, C ≦0.45 %.☛ Carbide tipped coated cutter: Suitable for Alloy Steel & High Carbon steel bars.
☛ Carbide tipped coated with special coating: Suitable for Stainless steel bars.
☛ Cermate tipped cutter with small pitch: Suitable for carbon steel pipe cutting.
☛ Tungsten carbide tipped with negative rack angle: Suitable for Aluminium & Aluminium alloy bars.
☛ Tungsten carbide tipped with special coating: Suitable for copper & Brass.
Standard Sizes of Circular Saw Blades: | ||||
|---|---|---|---|---|
| Dia.(mm) | Kerf | Plate | Bore | Teeth |
| 250 | 2.0 | 1.7 | 32 | 60 |
| 250 | 2.0 | 1.7 | 32 | 72 |
| 250 | 2.0 | 1.7 | 32 | 80 |
| 285 | 2.0 | 1.7 | 32/40 | 60 |
| 285 | 2.0 | 1.7 | 32/40 | 72 |
| 285 | 2.0 | 1.7 | 32/40 | 80 |
| 315 | 2.3 | 2.0 | 32/40 | 60 |
| 315 | 2.3 | 2.0 | 32/40 | 72 |
| 315 | 2.3 | 2.0 | 32/40 | 80 |
| 360 | 2.6 | 2.3 | 40/50 | 60 |
| 360 | 2.6 | 2.3 | 40/50 | 72 |
| 360 | 2.6 | 2.3 | 40/50 | 80 |
| 460 | 2.6 | 2.3 | 50 | 60 |
| 460 | 2.6 | 2.3 | 50 | 72 |
| 460 | 2.6 | 2.3 | 50 | 80 |
| For Pipe cutting & special sizes Pl write to us. | ||||
Suitable for medium carbon steel bars, C ≦0.45 %
With higher wear resistant tooth tips, it achieves more stable and longer cutting performance for solid bars of carbon steel grade & medium alloy steel of carbon content less than 0.45%. .
Application Cuts solids of Medium Carbon steel grade
Machines Cold saw machine Vc = 80 m/min - 115 m/min f z = 0.04 mm - 0.07 mm
Tip Material Cermet
With higher wear resistant tooth tips, it achieves more stable and longer cutting performance for solid bars of carbon steel grade & medium alloy steel of carbon content less than 0.45%. .
Application Cuts solids of Medium Carbon steel grade
Machines Cold saw machine Vc = 80 m/min - 115 m/min f z = 0.04 mm - 0.07 mm
Tip Material Cermet
Suitable for Alloy Steel & High medium carbon steel bars
With High resistant tungsten carbide edges, treated with a special coating for the longest tool life
Application Cuts solids of High carbon steel & Alloy Steel
Machines Cold saw machine Vc = 70 m/min - 100 m/min f z = 0.04 mm - 0.07 mm
Tip Material Coated Tungsten Carbide
With High resistant tungsten carbide edges, treated with a special coating for the longest tool life
Application Cuts solids of High carbon steel & Alloy Steel
Machines Cold saw machine Vc = 70 m/min - 100 m/min f z = 0.04 mm - 0.07 mm
Tip Material Coated Tungsten Carbide
Suitable for Stainless Steel bars SS304, SS316 grades.
Special coating for longer tool life compared with conventional saw blades for stainless steel cutting
Application Cuts solid of all types stainless steel grade
Machines Cold saw machine Vc = 45 m/min - 70 m/min f z = 0.04 mm - 0.06 mm
Tip Material Coated Tungsten Carbide
*Special lubricant oil is recommended for SS cutting.
Special coating for longer tool life compared with conventional saw blades for stainless steel cutting
Application Cuts solid of all types stainless steel grade
Machines Cold saw machine Vc = 45 m/min - 70 m/min f z = 0.04 mm - 0.06 mm
Tip Material Coated Tungsten Carbide
*Special lubricant oil is recommended for SS cutting.
y
Suitable for medium carbon steel Pipes
With higher wear resistant tooth tips & small pitch, it achieves more stable and longer cutting performance for steel pipe cuttings..
Application Cuts pipes of Medium Carbon steel grade
Machines Cold saw machine Vc = 80 m/min - 115 m/min f z = 0.04 mm - 0.07 mm
Tip Material Cermet
With higher wear resistant tooth tips & small pitch, it achieves more stable and longer cutting performance for steel pipe cuttings..
Application Cuts pipes of Medium Carbon steel grade
Machines Cold saw machine Vc = 80 m/min - 115 m/min f z = 0.04 mm - 0.07 mm
Tip Material Cermet
